Heat Insulator (For Construction)

Functions of HIS-300: HIS Series (HIS-300F, 300W)

Roof Waterproof Replacement

• Improvement of insulation of current buildings
and waterproof (roof and exterior) function

• Roof installation not required (semi-permanent)
Reduced energy costs

• Energy conservation and environment improvement due to heavy internal variations in winter and summer season in houses, factories, and insulation water
Environment-friendly products

• Environmentally friendly materials (oil and minerals) do not cause harmful substances, and can be used on top of existing (urethane, sheet) waterproofing agents.

Product Characteristics / Waterproof Insulation of HIS: HIS Series (HIS-300F, 300W)

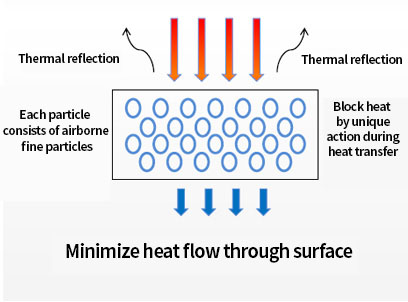

Eco-friendly insulation using organic/inorganic Binder
and Superheated Ceramic materials; - Applying conduction, convection, radiation and reflection and heat transfer principles
① Spray coating allows the micro-particle structure to perform
at least 85% heat-blocking effects.
② Each ceramic particle holding the air makes the heat transfer very slow.
③ Low heat transfer coefficient of the gas significantly reduces the thermal
conductivity of the surface, prevents corrosion of flow coater and minimizes
heat movement at the same time.

Product Overview / Heat Insulation Spray (HIS) Characteristics

Thermal Conductivity

• [ HIS-SERIES : 0.050 w/m.K]
Flammability

•It is environment-friendly with its flammability

Excellent constructability

• Workability is excellent with Spray, Paint Roller, Putty, or other constructions.

• Narrow and complex structures that are difficult to construct can also be easily constructed and repaired.
Eco-friendly organic/inorganic insulation

• Eco-friendly water-resistant insulation using organic and inorganic materials

•with waterproof and chemical resisting properties

•occurring no wastes that pollute the environment.

Comparison of Workability with Existing Waterproofing System (In case of waterproofing on the roof of an architectural building) HIS (Heat Insulation Spray)

HIS (Heat Insulation Spray)

Category	Existing Waterproofing (Urethane)	HIS-300F, HIS-300W	Remarks
Insulating Performance	• There are few insulation functions • Good chemical resistance and water resistance. • Susceptible to for infrared, ultraviolet and oil	• Almost unresponsive to insulation, chemical resistance, thermal resistance, and sunlight. (Effective environment and energy savings due to the effect of heat cut-off in winter and summer)	• Excellent thermal function
Constructability	• Disposing of existing • Good chemical resistance and water resistance. • Background cleanup (Grinding, dust-cleaning) • Reinforcement of the floor plastering resin mortar repair) • Repairing humid locations • Background cleanup • Drying(Not available in rainy, or humid seasons) • Lower (urethane primer) construction (oil) • Medium (Non-flexible urethane plaster) construction • High (high-strength urethane) Construction (2 times) • High(Top Coating) Construction • Re-construction every 2~3 years (Top Coating)	• Removing or clean existing items • Surface arrangement (Scrapper) • Water cleaning (High-pressure washing machine) • Construction (even in wet conditions): Water-based • One material (HIS-300) • Insulation waterproofing for inner and outer walls of building • Almost semi-permanent • Industrial facility insulation (Heating not required) • Adhesion of new and old concrete (Crack prevention) • Can be applied on top of any existing waterproofing agent	• Reducing construction labor costs • Reducing construction and processes • Additional Top Coating not required after construction

Packaging unit

HIS-300F Primer for Floor (SPRAY, ROLLER, BRUSH)
PAIL : 18 LITER(11Kg)
HIS-300W For Wall (PUTTY)
PAIL : 10Kg SET
DRUM : 180 LITER
Packaging requested by Client

HIS-300W applied area (based on 1PAIL)- Store value

Thickness	1mm	2mm	3mm	4mm	5mm
Applied area	18㎡	9㎡	6㎡	4.5㎡	3.6㎡

IS-300F applied area (based on 1PAIL) : 30㎡(store value)
